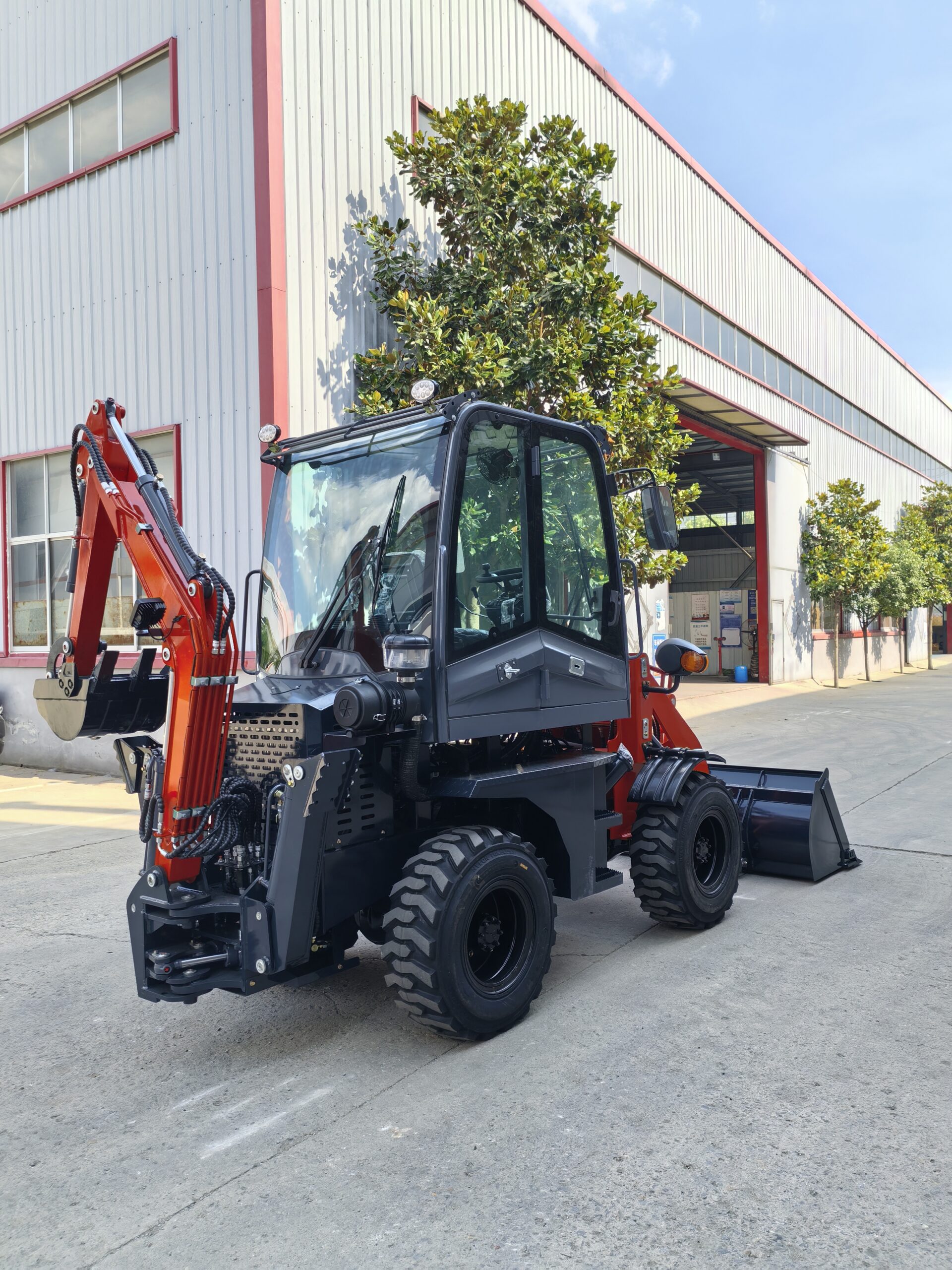

LE10-20 Backhoe Loader
1. Compact, flexible, and energy-efficient.
2. A two-handle, one-tow handle design ensures easy operation.
3. Sliding excavator design offers the advantages of foldable side excavation and free sliding.
4. Equipped with an auxiliary oil circuit, it can be upgraded with practical auxiliary equipment, enabling multi-purpose use.
5. Easy maintenance and excellent upkeep ensure low operating and maintenance costs.
：+8615953450090
：Warranty 1 year
: Customized Graphics (Minimum Order: 1 piece)
SPECIFICATIONS
| Operating weight | 2750kg |
|---|---|
| Arm digging force | 4.5KN |
| Maximum bucket digging force | 13KN |
| Bucket capacity | 0.5m³ |
| Bucket width | 1700mm |
| System pressure | 16.5MPA |
| Maximum tractive effort | 16KN |
| Ground pressure | 110KPA |
| Engine brand | Yunnei 490/Kubota 1703 |
| Rated power | 37kw/2200rpm |
| Main pump | Tate Brand |
| Pump model | 24/17 |
| Flow rate | 54/31 |
| Travel motor | Torque converter |
| Travel speed (high and low) | 13km/h |
| Gradability | 25° |
| Fuel tank capacity | 50L |
| Transmission | Fixed-axis power shift |
| Number of gears | 2 forward speeds, 2 reverse speeds |
| Powertrain | Four-wheel drive |
| Maximum digging height | 3540mm |
| Maximum dumping height | 2000mm |
| Maximum digging depth | 1650mm |
| Maximum vertical digging depth | 1650mm |
| Maximum digging radius | 2900mm |
| Bucket dumping height | 2200mm |
| Loaded lift capacity | 800kg |
| Maximum lift force | 25KN |
| Dimensions (length * width * height) | 4750*1670*2530mm |
| Chassis ground clearance | 240mm |
| Track width | 1130mm |
| Wheelbase | 1780mm |
| Front tire pressure | 2.5mpa |
| Rear tire pressure | 2.5mpa |
| Specifications | 12-16.8mm |
LE10-20 Backhoe Loader Product Details:
Wide-view cab for clear visibility and durable durability.
The Q345-C high-strength steel one-piece frame provides enhanced stability.
Luxury interior with an adjustable suspension seat.
The split instrument panel design facilitates maintenance. The comfortable joystick is simple and flexible.
Applications of the LE10-20 Backhoe Loader:
The LE10-20 Backhoe Loader is primarily used in small-scale construction environments such as afforestation, agricultural and animal husbandry construction, ditch construction, sewer cleaning, rice field dredging, and factory and mine loading and unloading. It is widely used in small and medium-sized tunnels over 2 meters wide. It is a national-level new practical equipment.
